GENIE 2S Trimless Recessed

The GENIE 2S series boasts a sleek design with deep anti-glare features, 45° shading angle, and a slim 5mm bezel. It delivers excellent illumination, gentle yet powerful, with various optical options including a narrow 9° beam angle and high CRI of 90. Perfect for upscale hospitality and residential, its all-metal body ensures efficient heat dissipation while offering flexibility in installation, meeting designers' highest standards. The all-metal body design ensures efficient heat dissipation, while the product's slim and delicate build allows for flexible adaptation, meeting designers' pursuit of ultimate application.

Feature

Four-way Convection All-metal Body Small Body Big Power Rigorous Thermal Design Management
Split Design
Patented Lens Design Deep Anti-glare Dark Light Technology Minimum UGR ≤ 1
Adjust The Brightness And CCT For Individual Application

Certification

General Info

Application: Indoor
Mounting Type: Trimless Recessed
Light Direction: Direct
Dimension: Opening 50×50mm,Opening 70×70mm,Opening φ35mm,Opening φ45mm,Opening φ55mm,Opening φ65mm,Opening φ75mm
Lamp Body Material: ADC12,AL1070
Finish Colors: Black,White
Reflector Coating: Black chrome,Matte black,Matte white,Mirror
Fire-Resistance Rating: UL94-V2
IP Rating: IP20,IP54
Operating Temperature: -15℃~35℃
Storage Temperature: 0℃-40℃
Warranty: 5 years
Certifications: CE,Reach,RoHS

Electrical Info

Input Voltage: AC220-240V
Driver Brand: Aidiming,Colors,Eaglerise,Xiongyuan
Electrical Insulation Class: Class Ⅱ
Dimming: 0-10V,DALI-2,Non-Dimming,Triac

Optical Info

Version: CCT Tunable,Regular
LED Type: COB
LED Brand: Bridgelux,CREE,Guineng
CRI: Ra90+
CCT: 2700-6500K,2700K,3000K,3500K,4000K
SDCM: ≤3 Step (ANSI)
Beam Angle: 8°,9°,15°,24°,28°,36°,45°,50°
UGR(4H,8H): UGR＜6 min,UGR＜10 min,UGR＜13 min
LED Lifetime: 000H,>50,L90B10(Ta 25℃)

Download

Product Code

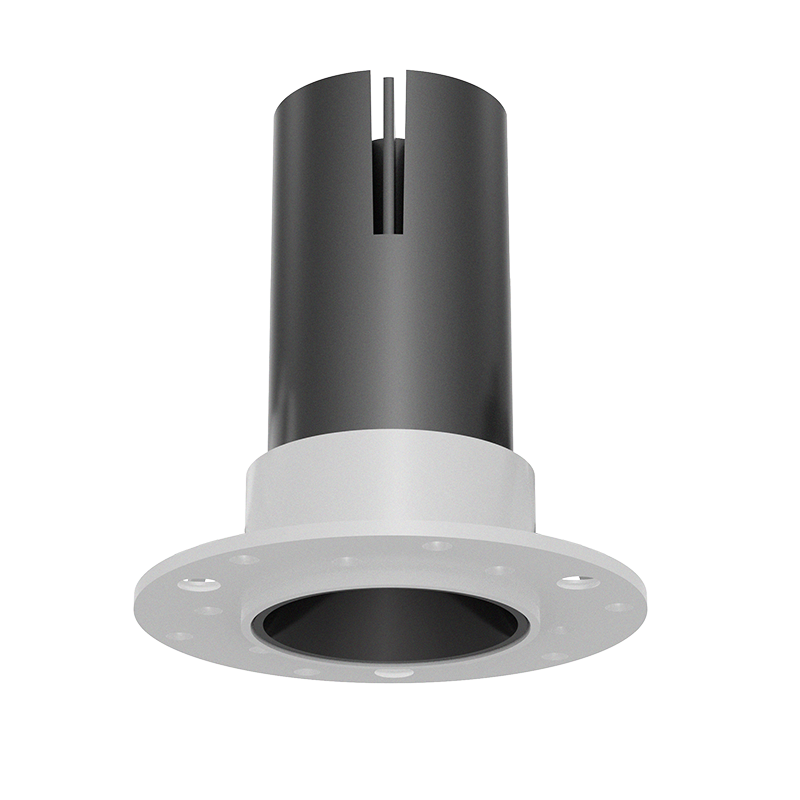

G2SR35L1(E)

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	Opening φ35mm	6W	Ra90+	2700K	8°	172 lm	29 lm/W	AC220-240V
-	Regular	Opening φ35mm	6W	Ra90+	2700K	15°	220 lm	37 lm/W	AC220-240V
-	Regular	Opening φ35mm	6W	Ra90+	2700K	24°	240 lm	40 lm/W	AC220-240V
-	Regular	Opening φ35mm	6W	Ra90+	2700K	36°	220 lm	37 lm/W	AC220-240V
-	Regular	Opening φ35mm	6W	Ra90+	3000K	8°	180 lm	30 lm/W	AC220-240V
-	Regular	Opening φ35mm	6W	Ra90+	3000K	15°	230 lm	38 lm/W	AC220-240V
-	Regular	Opening φ35mm	6W	Ra90+	3000K	24°	255 lm	42 lm/W	AC220-240V
-	Regular	Opening φ35mm	6W	Ra90+	3000K	36°	230 lm	38 lm/W	AC220-240V
-	Regular	Opening φ35mm	6W	Ra90+	3500K	8°	189 lm	32 lm/W	AC220-240V
-	Regular	Opening φ35mm	6W	Ra90+	3500K	15°	242 lm	40 lm/W	AC220-240V

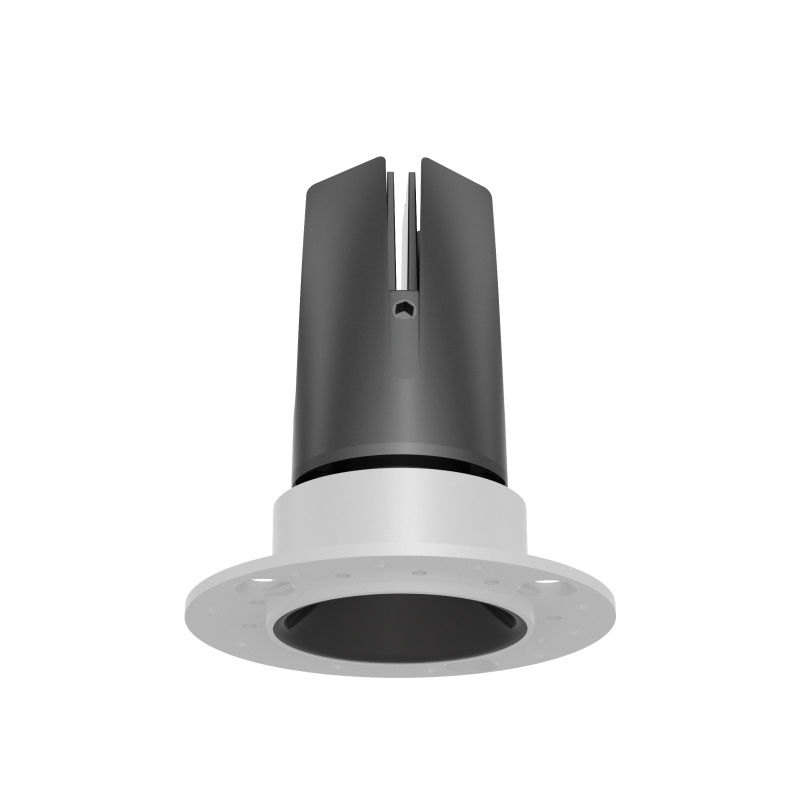

G2SR45L2(E)

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	Opening φ45mm	6W	Ra90+	2700K	15°	230 lm	38 lm/W	AC220-240V
-	Regular	Opening φ45mm	6W	Ra90+	2700K	24°	320 lm	53 lm/W	AC220-240V
-	Regular	Opening φ45mm	6W	Ra90+	2700K	36°	325 lm	54 lm/W	AC220-240V
-	Regular	Opening φ45mm	6W	Ra90+	2700K	45°	325 lm	54 lm/W	AC220-240V
-	Regular	Opening φ45mm	6W	Ra90+	3000K	15°	240 lm	40 lm/W	AC220-240V
-	Regular	Opening φ45mm	6W	Ra90+	3000K	24°	335 lm	56 lm/W	AC220-240V
-	Regular	Opening φ45mm	6W	Ra90+	3000K	36°	340 lm	57 lm/W	AC220-240V
-	Regular	Opening φ45mm	6W	Ra90+	3000K	45°	340 lm	57 lm/W	AC220-240V
-	Regular	Opening φ45mm	6W	Ra90+	3500K	15°	260 lm	43 lm/W	AC220-240V
-	Regular	Opening φ45mm	6W	Ra90+	3500K	24°	370 lm	62 lm/W	AC220-240V

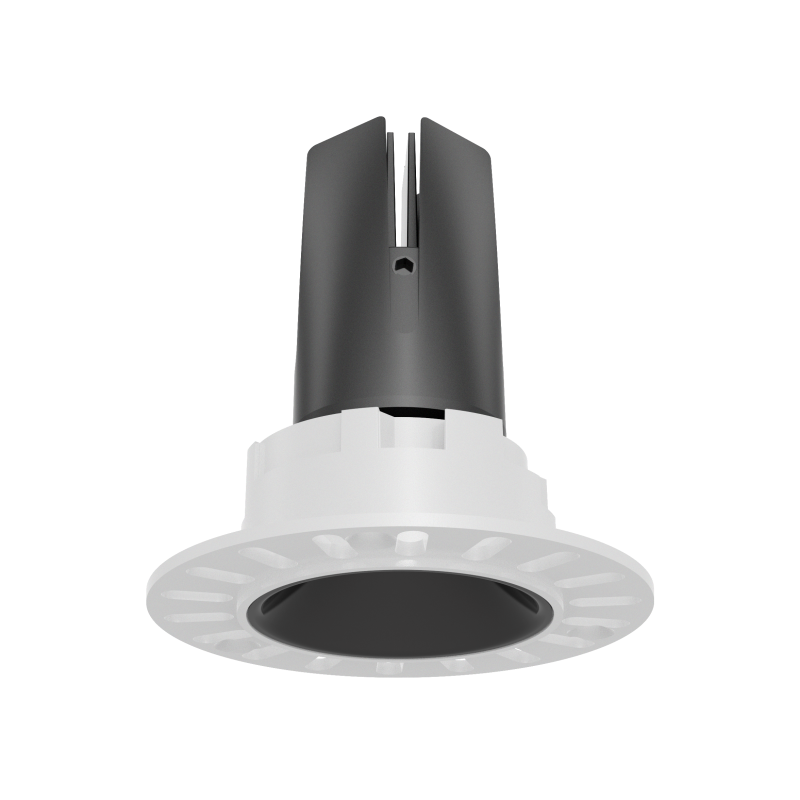

G2SR55L2(E)

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	Opening φ55mm	6W	Ra90+	2700K	15°	230 lm	38 lm/W	AC220-240V
-	Regular	Opening φ55mm	6W	Ra90+	2700K	24°	320 lm	53 lm/W	AC220-240V
-	Regular	Opening φ55mm	6W	Ra90+	2700K	36°	325 lm	54 lm/W	AC220-240V
-	Regular	Opening φ55mm	6W	Ra90+	2700K	45°	325 lm	54 lm/W	AC220-240V
-	Regular	Opening φ55mm	6W	Ra90+	3000K	15°	240 lm	40 lm/W	AC220-240V
-	Regular	Opening φ55mm	6W	Ra90+	3000K	24°	335 lm	56 lm/W	AC220-240V
-	Regular	Opening φ55mm	6W	Ra90+	3000K	36°	340 lm	57 lm/W	AC220-240V
-	Regular	Opening φ55mm	6W	Ra90+	3000K	45°	340 lm	57 lm/W	AC220-240V
-	Regular	Opening φ55mm	6W	Ra90+	3500K	15°	260 lm	43 lm/W	AC220-240V
-	Regular	Opening φ55mm	6W	Ra90+	3500K	24°	370 lm	62 lm/W	AC220-240V

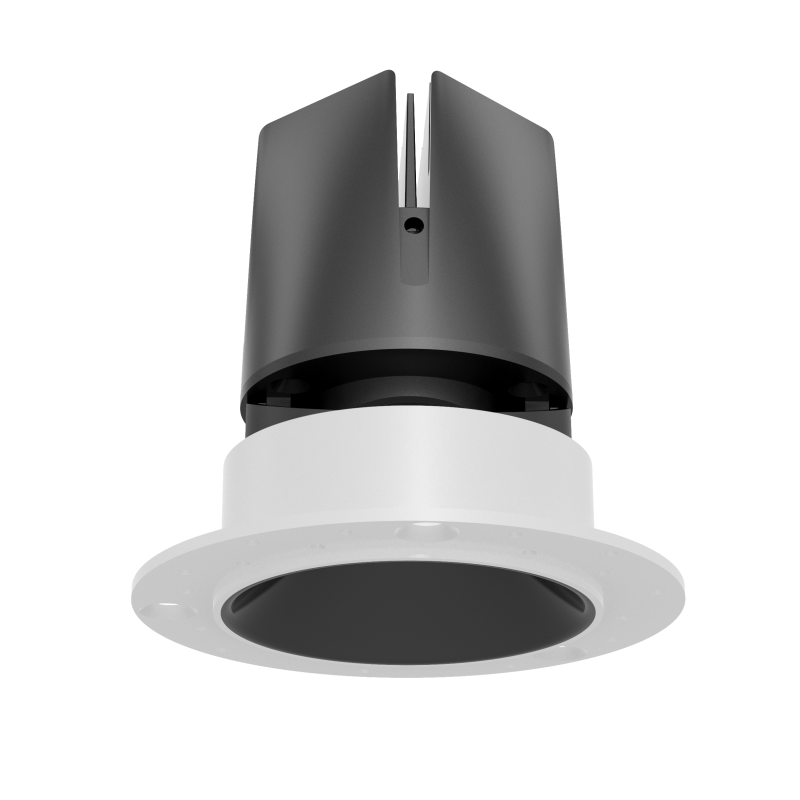

G2SR65L2(E)

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	Opening φ65mm	9W	Ra90+	2700K	9°	200 lm	22 lm/W	AC220-240V
-	Regular	Opening φ65mm	9W	Ra90+	2700K	15°	475 lm	53 lm/W	AC220-240V
-	Regular	Opening φ65mm	9W	Ra90+	2700K	24°	580 lm	64 lm/W	AC220-240V
-	Regular	Opening φ65mm	9W	Ra90+	2700K	36°	600 lm	67 lm/W	AC220-240V
-	Regular	Opening φ65mm	9W	Ra90+	2700K	50°	545 lm	61 lm/W	AC220-240V
-	Regular	Opening φ65mm	9W	Ra90+	3000K	9°	215 lm	24 lm/W	AC220-240V
-	Regular	Opening φ65mm	9W	Ra90+	3000K	15°	500 lm	55 lm/W	AC220-240V
-	Regular	Opening φ65mm	9W	Ra90+	3000K	24°	610 lm	68 lm/W	AC220-240V
-	Regular	Opening φ65mm	9W	Ra90+	3000K	36°	630 lm	70 lm/W	AC220-240V
-	Regular	Opening φ65mm	9W	Ra90+	3000K	50°	575 lm	64 lm/W	AC220-240V

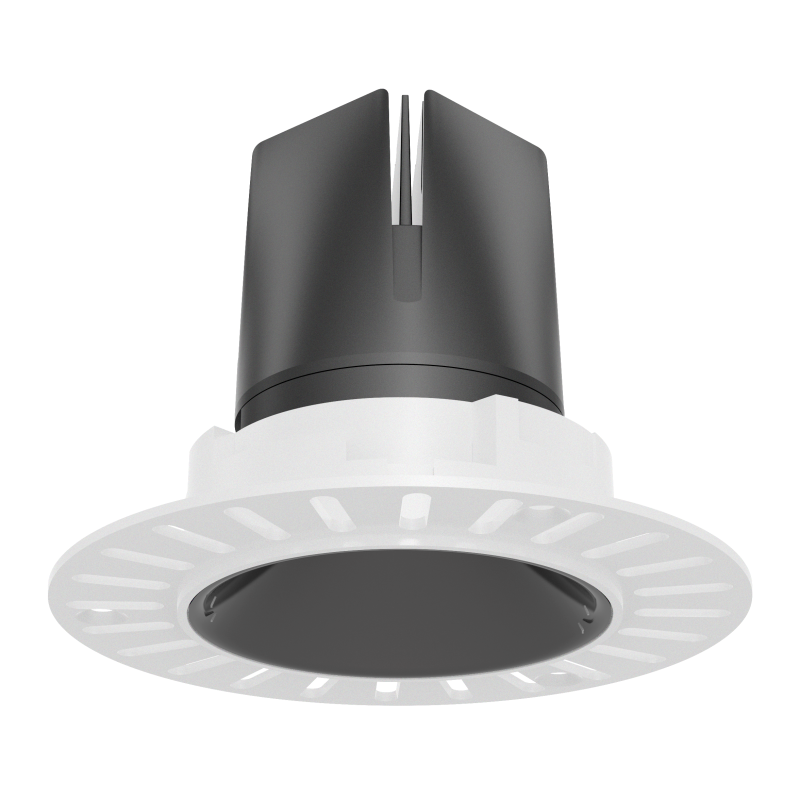

G2SR75L2(E)

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	Opening φ75mm	9W	Ra90+	2700K	9°	200 lm	22 lm/W	AC220-240V
-	Regular	Opening φ75mm	9W	Ra90+	2700K	15°	475 lm	53 lm/W	AC220-240V
-	Regular	Opening φ75mm	9W	Ra90+	2700K	24°	580 lm	64 lm/W	AC220-240V
-	Regular	Opening φ75mm	9W	Ra90+	2700K	36°	600 lm	67 lm/W	AC220-240V
-	Regular	Opening φ75mm	9W	Ra90+	2700K	50°	545 lm	61 lm/W	AC220-240V
-	Regular	Opening φ75mm	9W	Ra90+	3000K	9°	215 lm	24 lm/W	AC220-240V
-	Regular	Opening φ75mm	9W	Ra90+	3000K	15°	500 lm	55 lm/W	AC220-240V
-	Regular	Opening φ75mm	9W	Ra90+	3000K	24°	610 lm	68 lm/W	AC220-240V
-	Regular	Opening φ75mm	9W	Ra90+	3000K	36°	630 lm	70 lm/W	AC220-240V
-	Regular	Opening φ75mm	9W	Ra90+	3000K	50°	575 lm	64 lm/W	AC220-240V

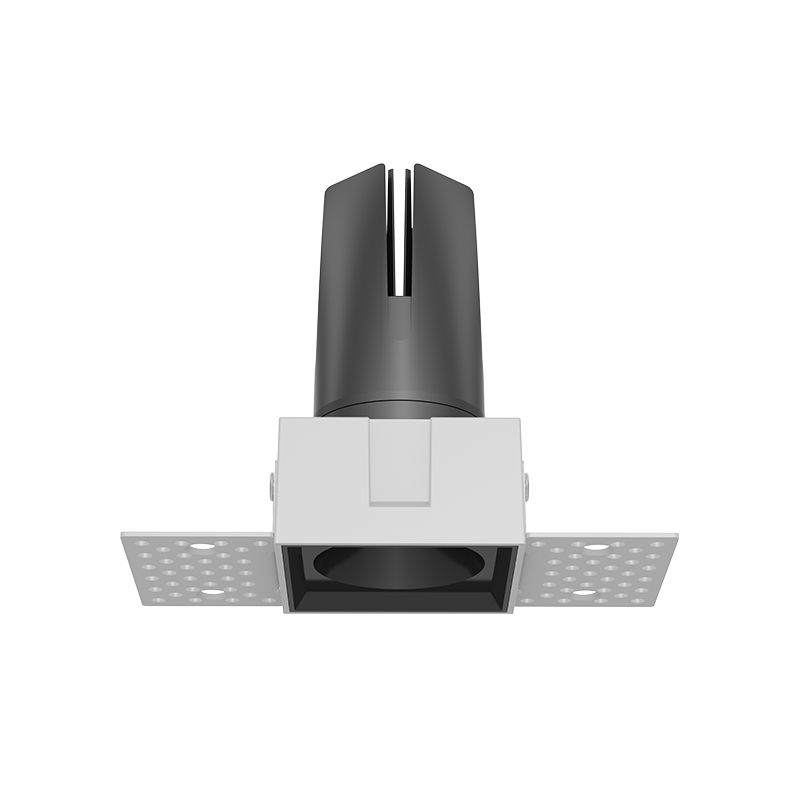

G2SR50S1(E)

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	Opening 50×50mm	6W	Ra90+	2700K	15°	230 lm	38 lm/W	AC220-240V
-	Regular	Opening 50×50mm	6W	Ra90+	2700K	24°	320 lm	53 lm/W	AC220-240V
-	Regular	Opening 50×50mm	6W	Ra90+	2700K	36°	325 lm	54 lm/W	AC220-240V
-	Regular	Opening 50×50mm	6W	Ra90+	2700K	45°	325 lm	54 lm/W	AC220-240V
-	Regular	Opening 50×50mm	6W	Ra90+	3000K	15°	240 lm	40 lm/W	AC220-240V
-	Regular	Opening 50×50mm	6W	Ra90+	3000K	24°	335 lm	56 lm/W	AC220-240V
-	Regular	Opening 50×50mm	6W	Ra90+	3000K	36°	340 lm	57 lm/W	AC220-240V
-	Regular	Opening 50×50mm	6W	Ra90+	3000K	45°	340 lm	57 lm/W	AC220-240V
-	Regular	Opening 50×50mm	6W	Ra90+	3500K	15°	260 lm	43 lm/W	AC220-240V
-	Regular	Opening 50×50mm	6W	Ra90+	3500K	24°	370 lm	62 lm/W	AC220-240V

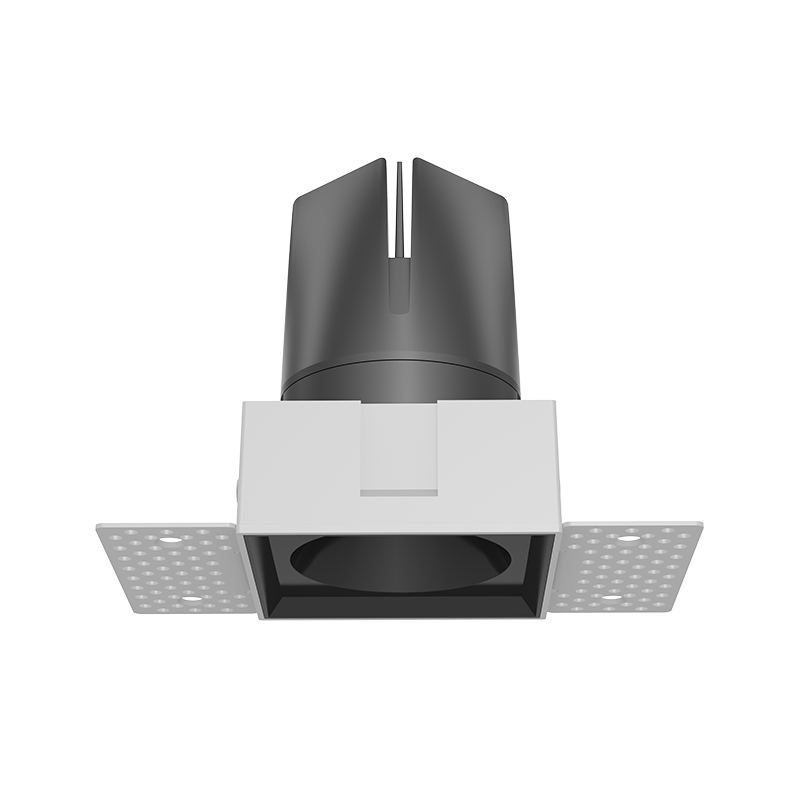

G2SR70S1(E)

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	Opening 70×70mm	9W	Ra90+	2700K	9°	200 lm	22 lm/W	AC220-240V
-	Regular	Opening 70×70mm	9W	Ra90+	2700K	15°	475 lm	53 lm/W	AC220-240V
-	Regular	Opening 70×70mm	9W	Ra90+	2700K	24°	580 lm	64 lm/W	AC220-240V
-	Regular	Opening 70×70mm	9W	Ra90+	2700K	36°	600 lm	67 lm/W	AC220-240V
-	Regular	Opening 70×70mm	9W	Ra90+	2700K	50°	545 lm	61 lm/W	AC220-240V
-	Regular	Opening 70×70mm	9W	Ra90+	3000K	9°	215 lm	24 lm/W	AC220-240V
-	Regular	Opening 70×70mm	9W	Ra90+	3000K	15°	500 lm	55 lm/W	AC220-240V
-	Regular	Opening 70×70mm	9W	Ra90+	3000K	24°	610 lm	68 lm/W	AC220-240V
-	Regular	Opening 70×70mm	9W	Ra90+	3000K	36°	630 lm	70 lm/W	AC220-240V
-	Regular	Opening 70×70mm	9W	Ra90+	3000K	50°	575 lm	64 lm/W	AC220-240V

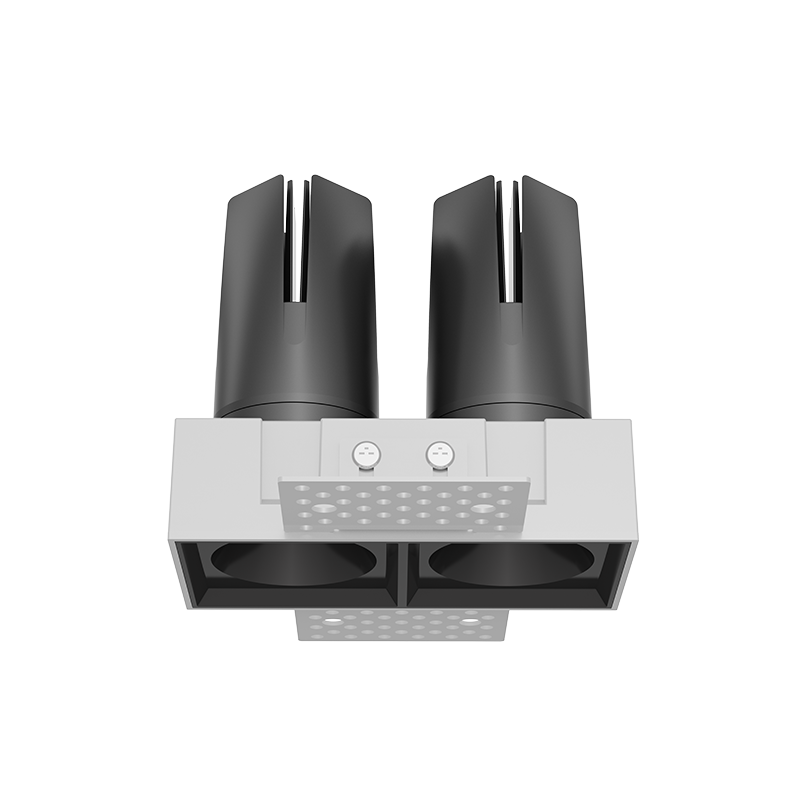

G2SR50S2(E)

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	Opening 50×50mm	12W	Ra90+	2700K	15°	456 lm	38 lm/W	AC220-240V
-	Regular	Opening 50×50mm	12W	Ra90+	2700K	24°	636 lm	53 lm/W	AC220-240V
-	Regular	Opening 50×50mm	12W	Ra90+	2700K	36°	646 lm	54 lm/W	AC220-240V
-	Regular	Opening 50×50mm	12W	Ra90+	2700K	45°	646 lm	54 lm/W	AC220-240V
-	Regular	Opening 50×50mm	12W	Ra90+	3000K	15°	480 lm	40 lm/W	AC220-240V
-	Regular	Opening 50×50mm	12W	Ra90+	3000K	24°	670 lm	56 lm/W	AC220-240V
-	Regular	Opening 50×50mm	12W	Ra90+	3000K	36°	680 lm	57 lm/W	AC220-240V
-	Regular	Opening 50×50mm	12W	Ra90+	3000K	45°	680 lm	57 lm/W	AC220-240V
-	Regular	Opening 50×50mm	12W	Ra90+	3500K	15°	504 lm	42 lm/W	AC220-240V
-	Regular	Opening 50×50mm	12W	Ra90+	3500K	24°	704 lm	59 lm/W	AC220-240V

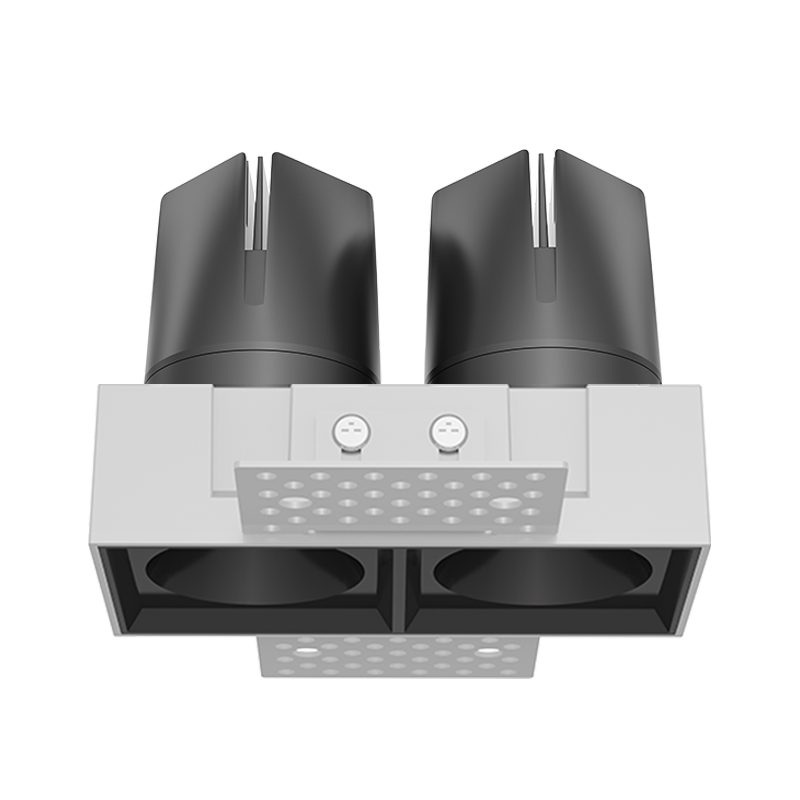

G2SR70S2(E)

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	Opening 70×70mm	18W	Ra90+	2700K	9°	408 lm	23 lm/W	AC220-240V
-	Regular	Opening 70×70mm	18W	Ra90+	2700K	15°	950 lm	53 lm/W	AC220-240V
-	Regular	Opening 70×70mm	18W	Ra90+	2700K	24°	1160 lm	64 lm/W	AC220-240V
-	Regular	Opening 70×70mm	18W	Ra90+	2700K	36°	1196 lm	66 lm/W	AC220-240V
-	Regular	Opening 70×70mm	18W	Ra90+	2700K	50°	1092 lm	61 lm/W	AC220-240V
-	Regular	Opening 70×70mm	18W	Ra90+	3000K	9°	430 lm	24 lm/W	AC220-240V
-	Regular	Opening 70×70mm	18W	Ra90+	3000K	15°	1000 lm	56 lm/W	AC220-240V
-	Regular	Opening 70×70mm	18W	Ra90+	3000K	24°	1220 lm	68 lm/W	AC220-240V
-	Regular	Opening 70×70mm	18W	Ra90+	3000K	36°	1260 lm	70 lm/W	AC220-240V
-	Regular	Opening 70×70mm	18W	Ra90+	3000K	50°	1150 lm	64 lm/W	AC220-240V
